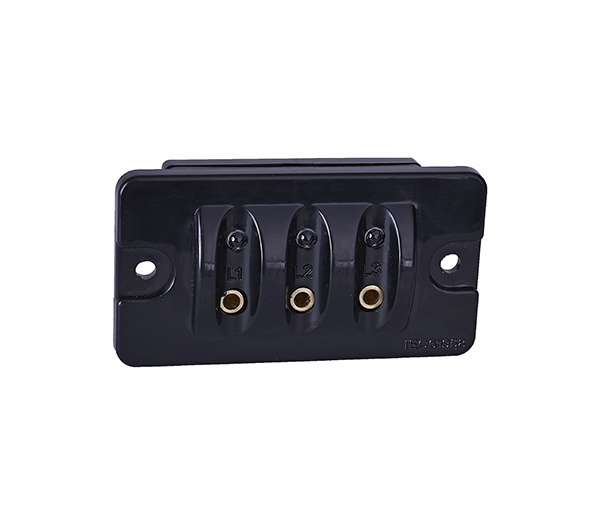

The voltage indicator type VIP80B can be used in medium voltage networks with a rated voltage of 3.3 kV to 36 kV. Its function is to indicate of existence or nonexistence of voltage under control.  Indicates the presence of voltage at each phase are permanently by blink LED. It provides perfect results without requiring supply to indicate voltage existence.

■- Reference Standards IEC 61958

■- Used for capacitive insulator and capacitive divider of CT to 36 KV

■- 3 test block for phases sequence test.

■- Operating temperature range of-20 ºC to +85 ºC

■- box material: ABS

■- Threshold voltage Un>un*10%

■- Blink frequency 0.2 to 2 HZ
